About This

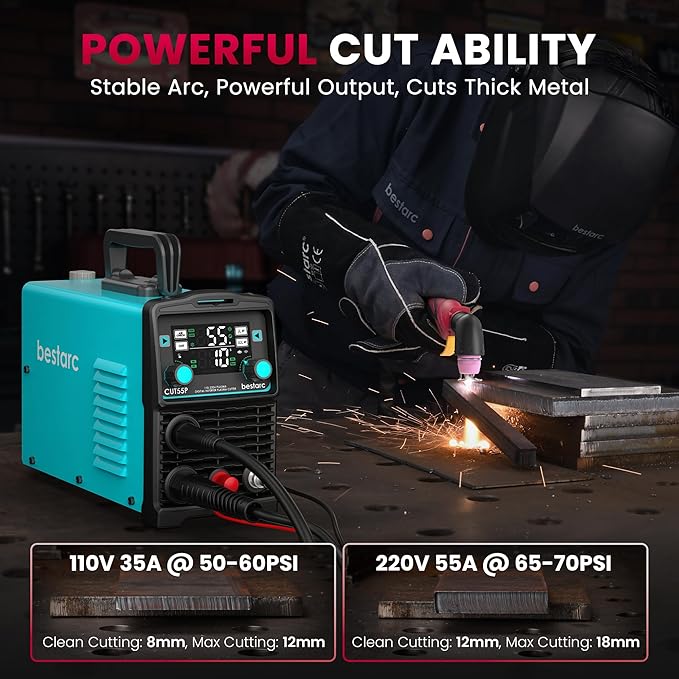

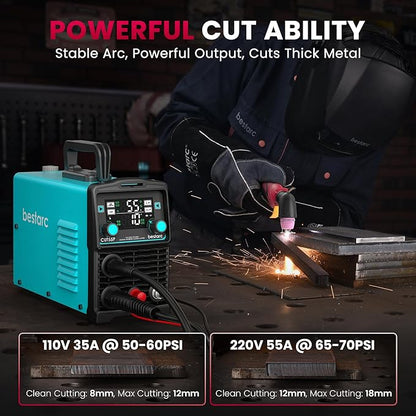

• [Powerful Cutting Ability] Dual voltage 110/220V good for home, workshop and hardware shop use. Professional performance1/2” clean cuts on Iron, Steel aluminum and copper with Inverter IGBT technology. Very powerful for DIY and heavy duty project. The Maximum cutting thickness is recommended to 1/2” (12mm)@35A 110V 50PSI; 3/4” (18mm)@55A 220V 65PSI. Dry and compressed air is required. Power breaker up to 40A@110V 35A; Up to 30A@220V 55A.

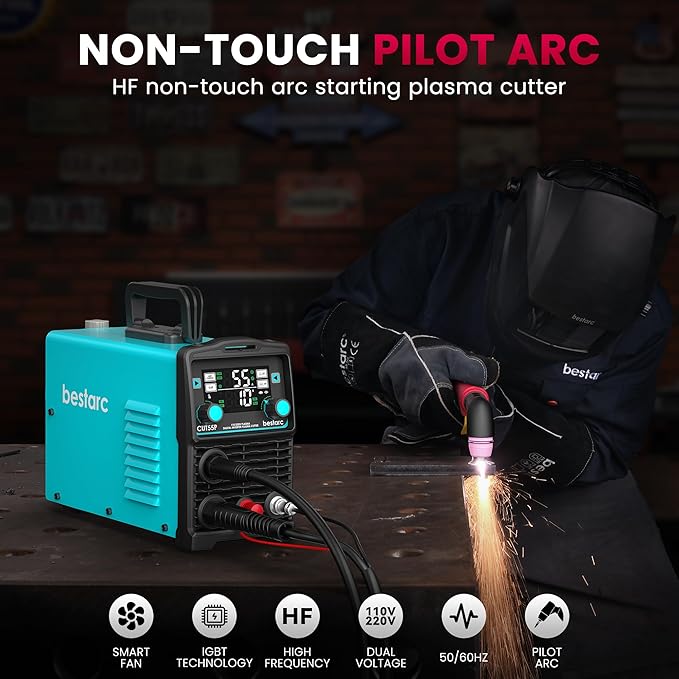

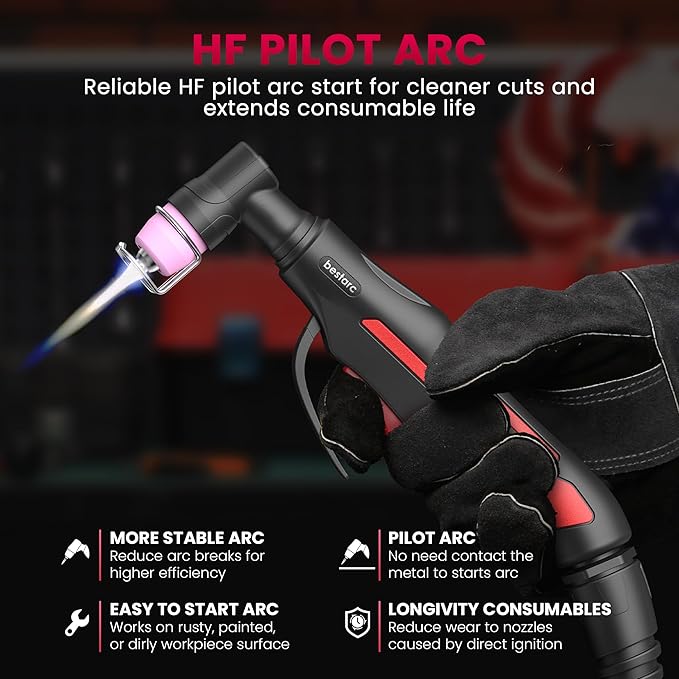

• [Pilot Arc]: bestarc plasma cutter with the pilot arc function. It is a high-frequency non-touch arc starting mode. The torch head does not need to touch the metal plate, making it effective on rusted, painted, or dirty metal surfaces. Adjustable PA function for extended pilot arc duration, reduced energy consumption in non-cutting work, reduced electrode burning, and extended consumables cutting life.

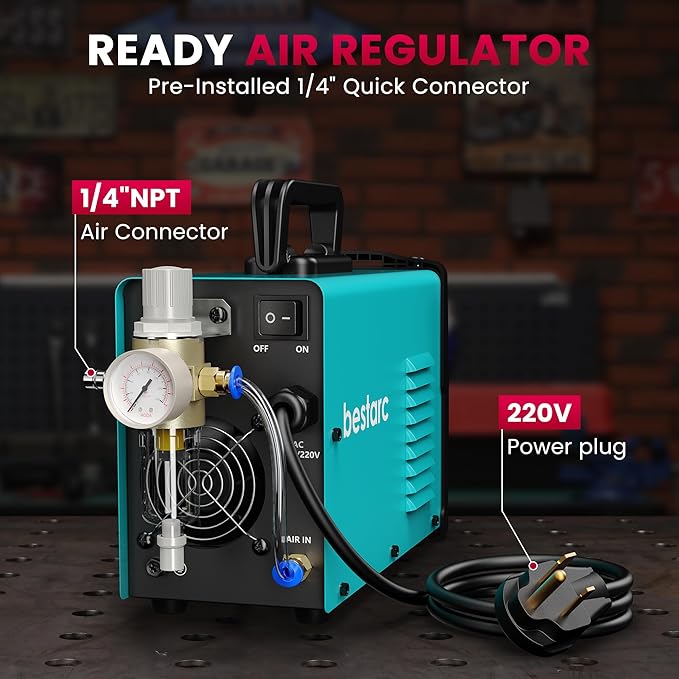

• [Air Regulator]: Users can adjust the air pressure manually through the air regulator (air pressure cannot be automatically adjusted). The air filter is installed at the rear of the machine with a quick air connector 1/4 NPT connector which can be used after opening the box, Once connected to an air compressor, the recommended air pressure should be within 60 PSI, with a flow rate of 250 liters per minute. Note: The compressor needs to be purchased separately.

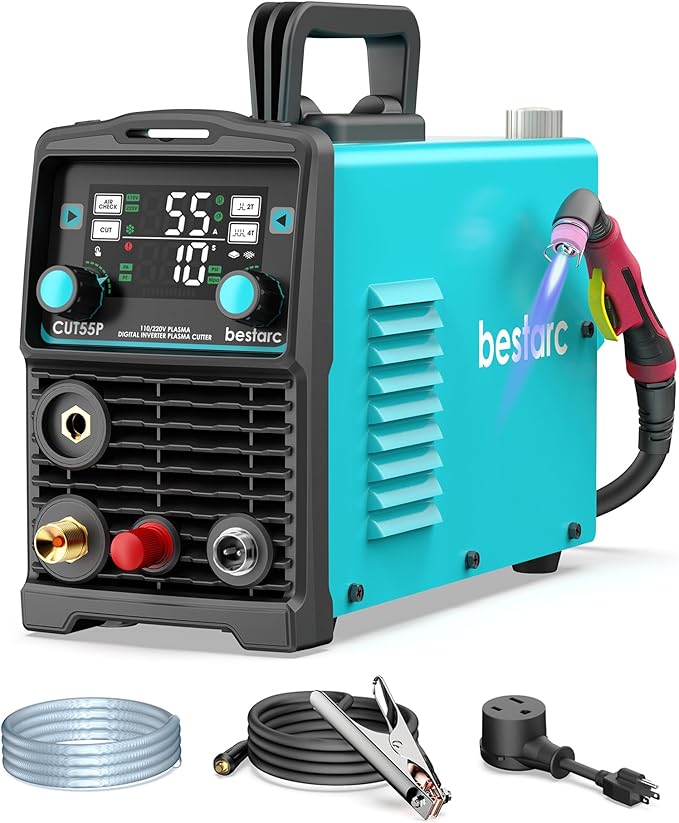

• [LED Screen Display]: The screen centrally displays parameters such as air pressure, voltage, and current, allowing users to understand the equipment status in real-time and adjust operations in a timely manner, improving operational efficiency. If the plasma cutter cannot work, the screen comes with an error code, making it easy to find out the problems.

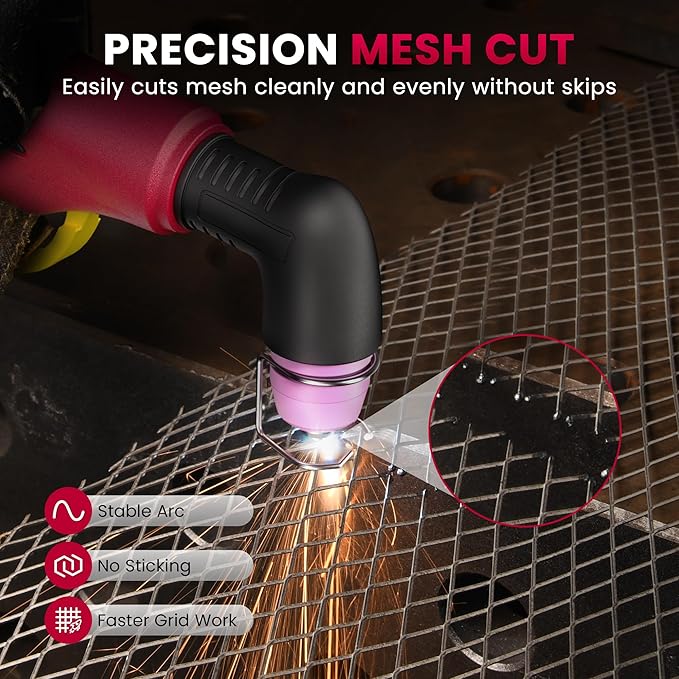

• [2T/4T/PA/PT Function]: Post time adjustable from 3-15s to cool the torch. Adjust the cooling time of the torch head to extend the service life of consumables. We recommend a cooling time of 4-8 seconds. The PA function allows pilot arc timing adjustment up to 15s; longer times are ideal for mesh cutting, shorter times help extend consumable life. 2T/4T automatic cutting release your finger.2T is a semi-automatic cutting control, and 4T is an automatic cutting control.
