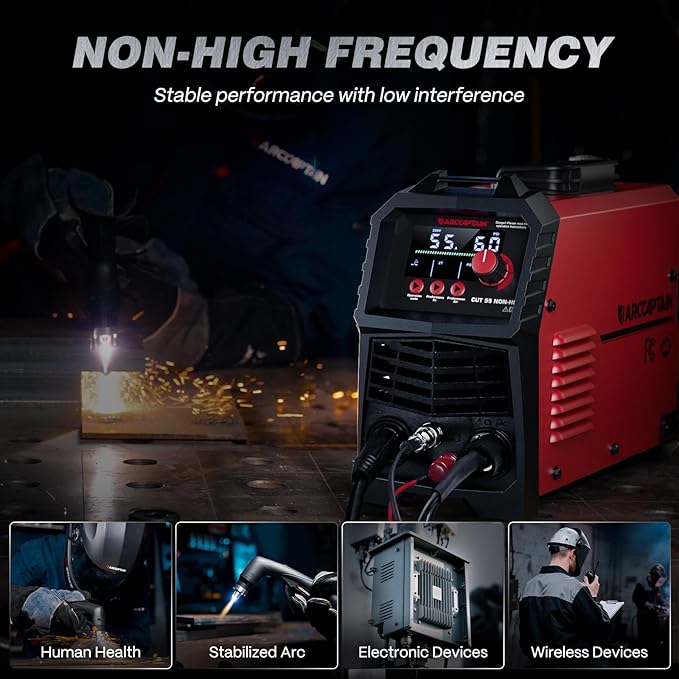

• NON-HIGH FREQUENCY: Uses a blow-back non-high frequency arc start to prevent signal interference and ensure safer operation for both users and bystanders, posing minimal risk to human health. The low-frequency arc maintenance system improves cutting stability, reduces electrode burn during idle time, and extends the life of consumables. Ideal for home garages and workshop environments.

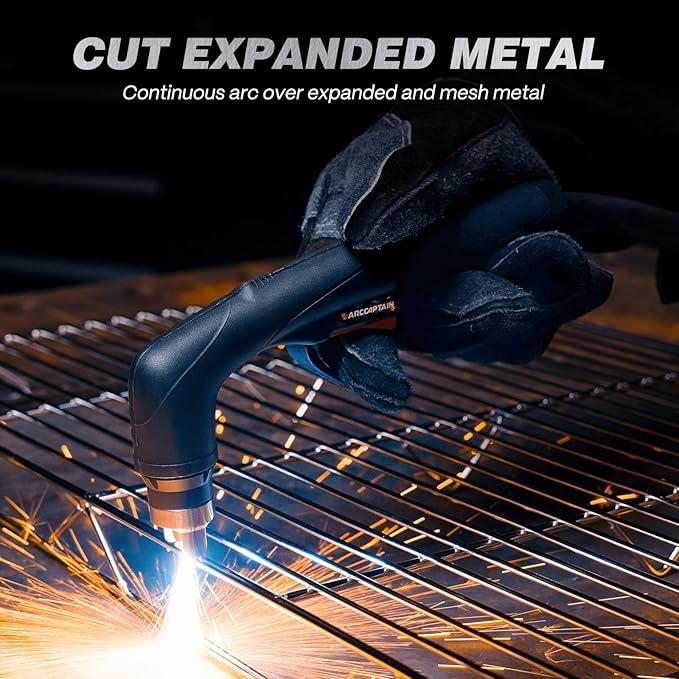

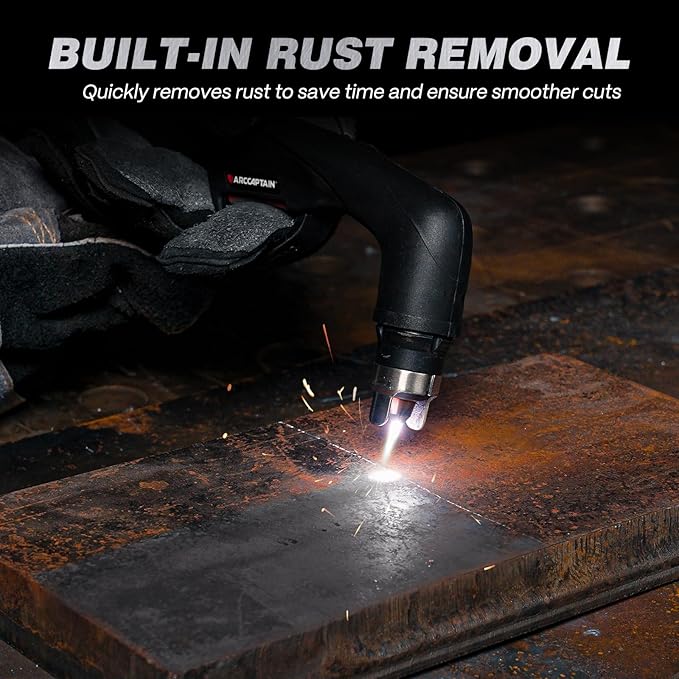

• MESH CUTTING & RUST CLEANING: Easily cuts through mesh and expanded metal without arc loss, ensuring smooth, continuous cuts and clean edges. Also features a fast rust removal mode—perfect for cleaning oxidized or dirty surfaces before welding or painting. Save time and improve workflow with dual-purpose functionality.

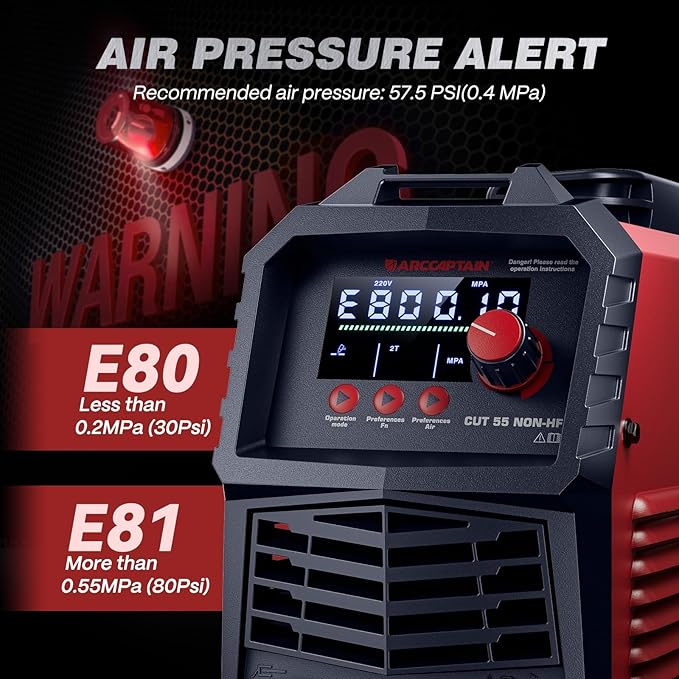

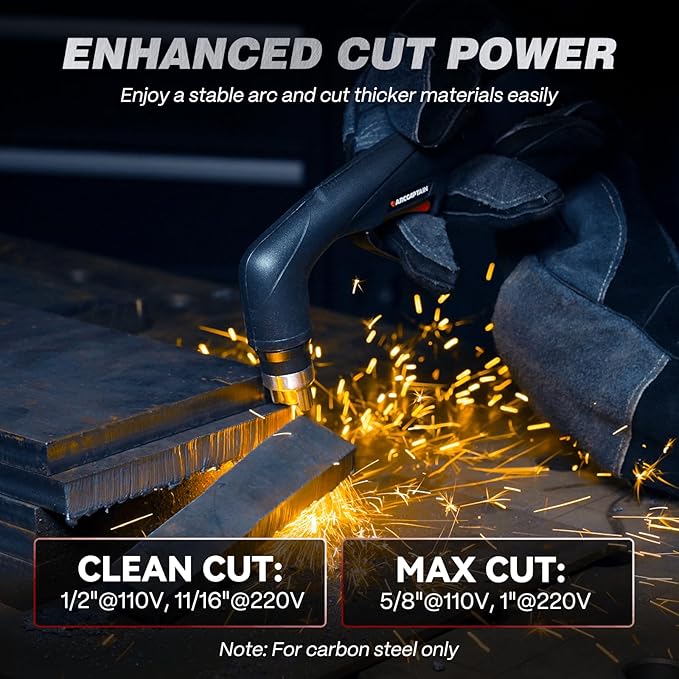

• ENHANCED CUT POWER: Delivers up to 11/16" clean cuts on steel, aluminum, and copper with advanced IGBT technology. Supports easy switching between 110V and 220V—perfect for home or workshop use. Built-in air pressure check ensures optimal cutting performance. The maximum cutting thickness is 15mm @ 35A 110V, 55PSI; 26mm@55A 220V, 75PSI. Current display at 110V is 20-35A, under 220V is 20-55A. Note: External air compressor required (not included).

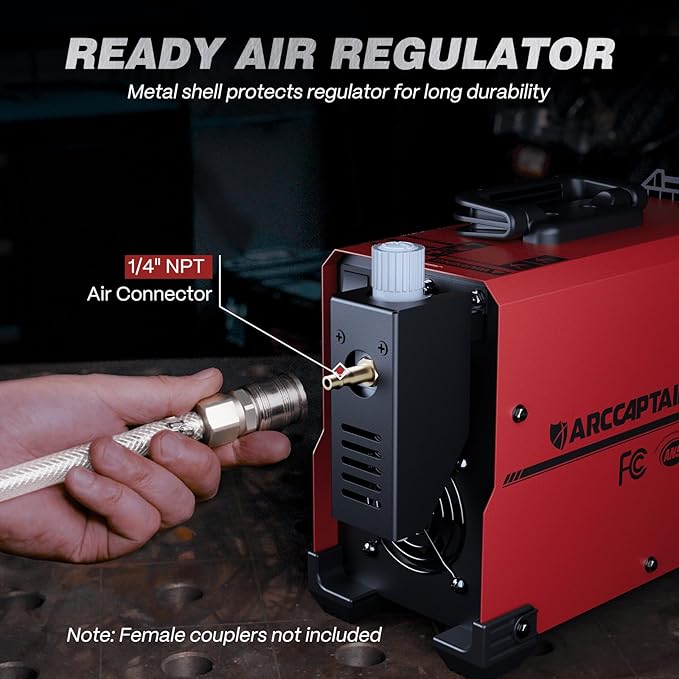

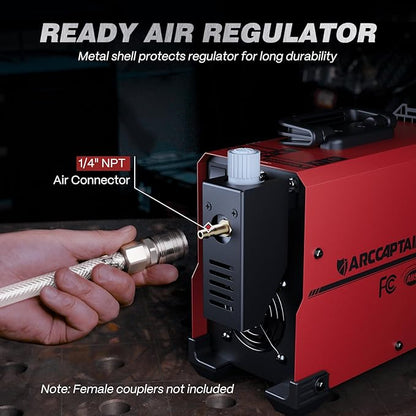

• PROTECTED AIR FILTER: The air filter is pre-installed on the back of the machine and protected by a durable metal housing. It comes with a quick-connect 1/4" NPT air fitting—ready to use out of the box. Users can manually adjust the air pressure using the regulator, and conveniently monitor it from the front panel during cutting operations. Compatible with standard air compressors (5.3 CFM @ 57.5 PSI).
• ROBUST SAFETY PROTECTION: Built-in protections for overload, overheating, and overcurrent trigger clear error codes instead of sudden shutdowns, allowing users to respond promptly. Includes IGBT voltage too low warning. IP21 water resistance provides extra safety, extending machine life for reliable long-term use.

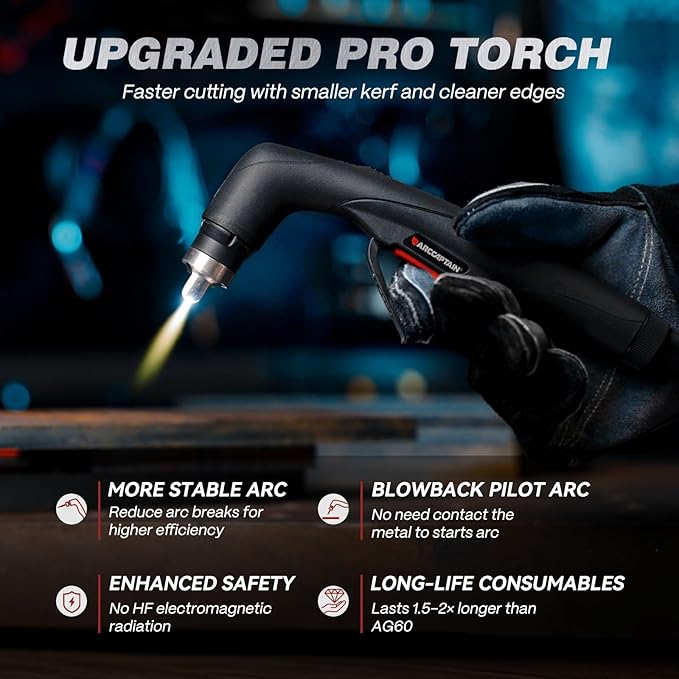

• BLOWBACK PILOT ARC: The IPT60 cutting torch delivers superior arc starting and cutting performance, effectively handling rough, painted, rusty, or dirty surfaces. Blow back pilot arc technology allows you to cut without touching the tips to the metal, reducing energy consumption and electrode wear—resulting in better cut quality and longer consumable life (saving you money).
• PA/PT/2T/4T FUNCTION: Supports PA (Pilot Arc) with adjustable arc time (2-10s) for cutting mesh or extending consumable life. PT (post-blow) time adjustable from 5-15s, recommended around 8 seconds to properly cool the torch and protect consumables. 2T/4T modes allow finger-free control: 2T for semi-automatic, 4T for full automatic cutting—enhancing comfort and precision.
